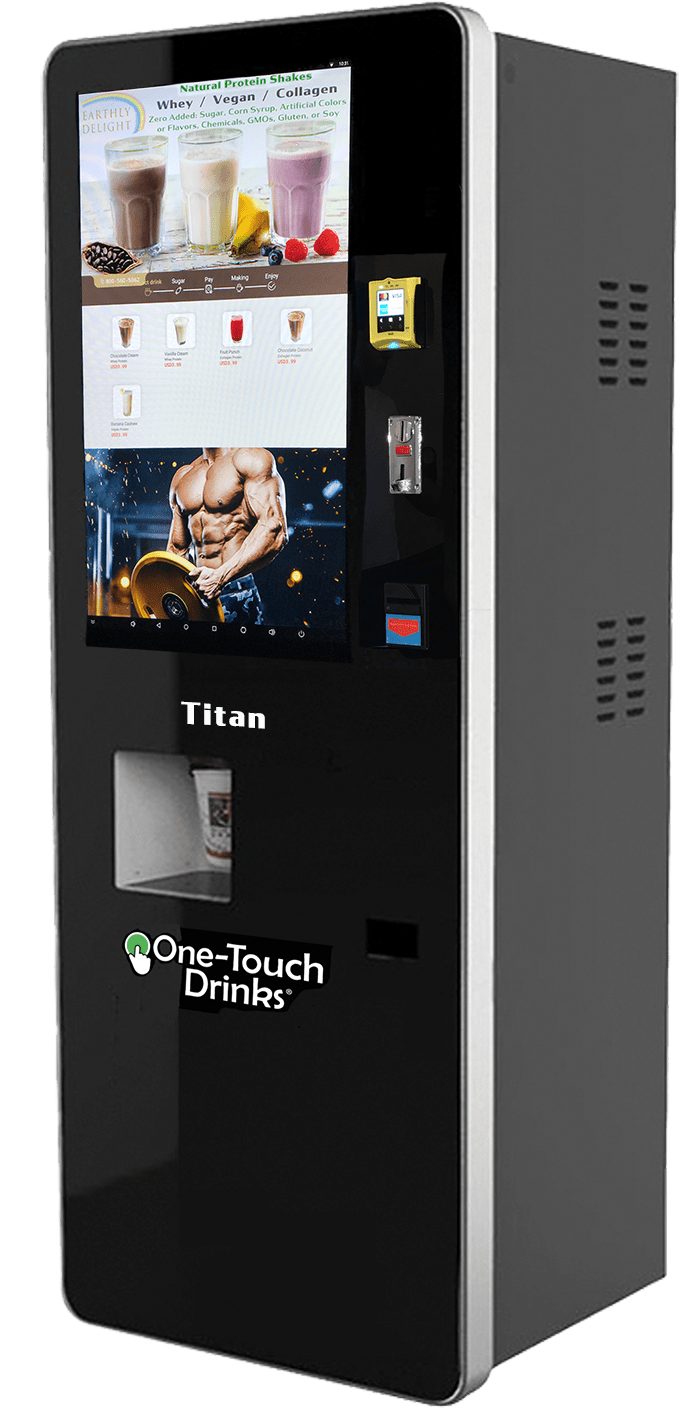

Titan Protein Shake Vending by One-Touch Drinks


Titan Protein Shake Vending machine creates frothy shakes within seconds at the touch of the selection. With Titan, you never need to serve bottled, over-processed, and sugary protein shakes again. It delivers five different powders for cold shakes at 36° F in 14-ounce cups. Ride the wave of shake success with Titan, an advanced protein drink machine designed to delight customers with something new that will increase your business’ profit. A recent market research report predicts a compound annual growth rate (CAGR) increase in the global sports nutrition market of around 9%. Protein powder dominates the market with a 65% share. The market is expected to show significant growth following an increase in consumer awareness toward maintaining a healthy diet and leading an active lifestyle. A minimalist, modern design draws the attention of consumers and boosts sales. Simply choose a drink selection on the beautiful 32″ touchscreen interface. A freshly prepared chilled protein shake is delivered within seconds. Titan incorporates a wide variety of payment solutions for your customers’ convenience.

Titan Features

  •  Choose a drink selection on the 32" touchscreen interface. A freshly prepared chilled protein shake is delivered within seconds.
  • Drinks are served at 36° F degrees in a 14 oz disposable, 90mm diameter cup which is automatically dispensed.
  • Titan incorporates a wide variety of payment solutions for your customers' convenience.
  • Nayax payment solution is connected for cashless payments
  • A coin acceptor is available and included in standard models.
  • A water filtration system (recommended) can be installed to ensure tap water quality and flavor.
  • Plumbed water is recommended but not mandatory.
  • Easily manage drink recipes and sales activity through cloud-based software (Internet access needed on-site).
  • An advanced hot flush hygiene system built inside performs automatic cleaning regularly.
  • Product canisters with easy top-fill openings have medium capacity.
  • For a robust design, the front is made of high-impact, resistance-tempered glass which stays new-looking longer than conventional fronts.
  • A protective, clear acrylic door covers the drink dispensing chamber.
  • An eco-friendly model with energy efficiency allows for 24-hour run cycles. Titan’s LED-based lighting system and Eco-Mode significantly reduce power consumption, achieving energy savings of up to 50%.
  • Titan's drip tray is made of the highest quality stainless steel and will last for the life of the machine.
  • Wrap the machine with your company's logo and custom images to brand your business and boost drink sales.
  • A digital signage media screen is available for advertising, product promotions, and general messaging.


  • Width: 26.7 in (68 cm)
  • Depth:23.6 in (60 cm)
  • Height: 70.8 in (180 cm)


  • 287 lbs

Drink Selections

  • Touch Display for 5 selections (one for each canister)
  • Multi-canister drink options are possible for additional combined flavors

Cups configuration

  • Cup carousel height: 22 in
  • Individual cup size: 3.5" diameter (90mm diameter) x 4.33" height
  • Approximately 14 oz
  • Cup dispenser capacity: 60-70 pc

Product capacity

  • Total soluble canisters: 5
  • 5-liter canisters: 5

Water Source

  • City tap direct line (water filters recommended & available here).
  • Gallon bottle feed line and pump set (included).

Chiller unit

  • Included
  • Chills drinks to as low as 36 °F degrees
  • Cold water tank capacity:  2 liters (2000 cc)


  • Boiler type: Atmospheric for cleaning purposes
  • Hot water temperature: 77-208 °F
  • Hot water tank capacity: 2 liters  (1800 cc)

Connectivity and Payments

  • Standard WiFi connectivity for cloud management of back-office, or
  • SIM Card is needed when WiFi access is not available.
  • Drink App allows for easy access to drink management, display files, statistics, etc.
  • Nayax payment system is included with Titan (installed at the manufacturing plant).


  • Voltage: 120V/60 Hz
  • Maximum power: 200w - 2.100w
  • Suggested use: turn off every day when not in use, or use a timer

Colors & Exterior Options

  • Black steel frame (included)
  • White One-Touch Drinks interchangeable magnetic wrap  (additional fees apply)
  • Custom wrap: magnet or sticker (additional fees apply)


  • No warranty is included with this machine that is on clearance.


Product Brochure

Weight 287 lbs
Dimensions 23.6 × 26.7 × 70.8 in
