Rio Advanced is designed in Europe by highly skilled engineers with decades of experience in the industry, ensuring you receive the highest quality espresso machine. Rio is a commercial-grade machine featuring high-quality components designed to withstand years of heavy usage.

DIMENSIONS

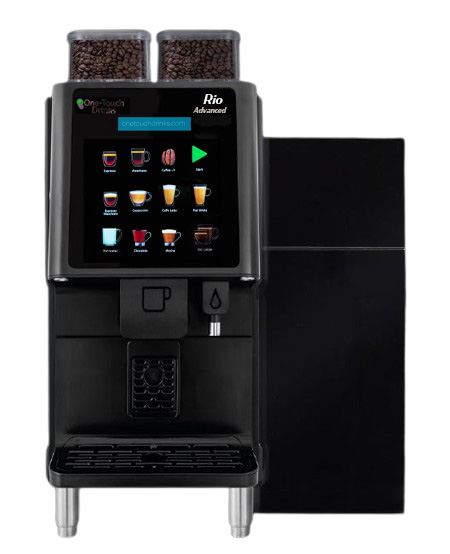

Rio Advanced

• Width: 13.75 inches (337 mm)
• Depth: 21 in. (516 mm)
• Height: 35 in. (890 mm)
• Weight: 86 lbs (39 kg)

Fresh Milk Fridge

• Width: 10 in
• Depth: 15″ in
• Height: 20″ in

USER INTERFACE, DRINK SELECTIONS, AND LCD DISPLAY

• Touch Screen Selections: The backlit display screen provides visual images and drink names for the menu. Touch or touchless makes it easy for the public to order drinks. The result creates a seamless user experience, eliminating confusion and mistakes.
• Total number of selections: 12  buttons
  • Menu example: Espresso, Americano (black coffee), Cappuccino, Café Latte, Mocha, Hot Chocolate, Macchiato (Cortado),  hot water for tea bags
• LCD display indicates information such as what drink is ordered, no water, coffee beans out, if the water tray is full, and to read the software program.
• Available languages: English, Spanish, Portuguese, French, and Dutch.

BREWING SYSTEMS

• Espresso V30: Variable Brewer grounds capacity 7- 14 grams per drink.
  • The variable brewing unit enables different brewing methods in a single machine: espresso and fresh brew coffee. Additionally, the coffee strength and drink size can be adjusted to be larger.
• Soluble mixer bowls: 1
  • The soluble system is specially designed to prevent errors and product blockage due to over-saturation in the bowls.
• 100 daily espresso maximum

BOILER

• Type: High pressure
• Capacity (volume): 23.7 oz / 315 cc

WATER SUPPLY

• Option (1): (standard) City tap water is supplied through a 1/4″ waterline into Rio’s backside water inlet and provides water for a longer run time.
  • Water filters are essential for enhancing the quality of the drink and protecting the boiler from mineral buildup.
• Option (2): (standard w/a purchase) A five-gallon water bottle and pump. Water is pushed from a waterbottle through a 1/4″ waterline into Rio’s backside water inlet with the help of an external Flowjet water pump. This setup is highly recommended for the safety and convenience of a non-plumbed line, resulting in cleaner water and higher drinking quality, with reduced water filtration needed.

GRINDERS

• Number of grinders: 1
• Type: Flat burr blades made of steel

DISPENSER’S CONFIGURATION

• Number of coffee bean hoppers: 1
• Number of soluble powder canisters: 2

CANISTER CAPACITY & TRAYS

• Whole bean coffee (2x): 4.85 lb
• Soluble chocolate: 2-3 lb
• Fold in/out small cup tray included
• The liquid waste tray holds 0.32 gal.

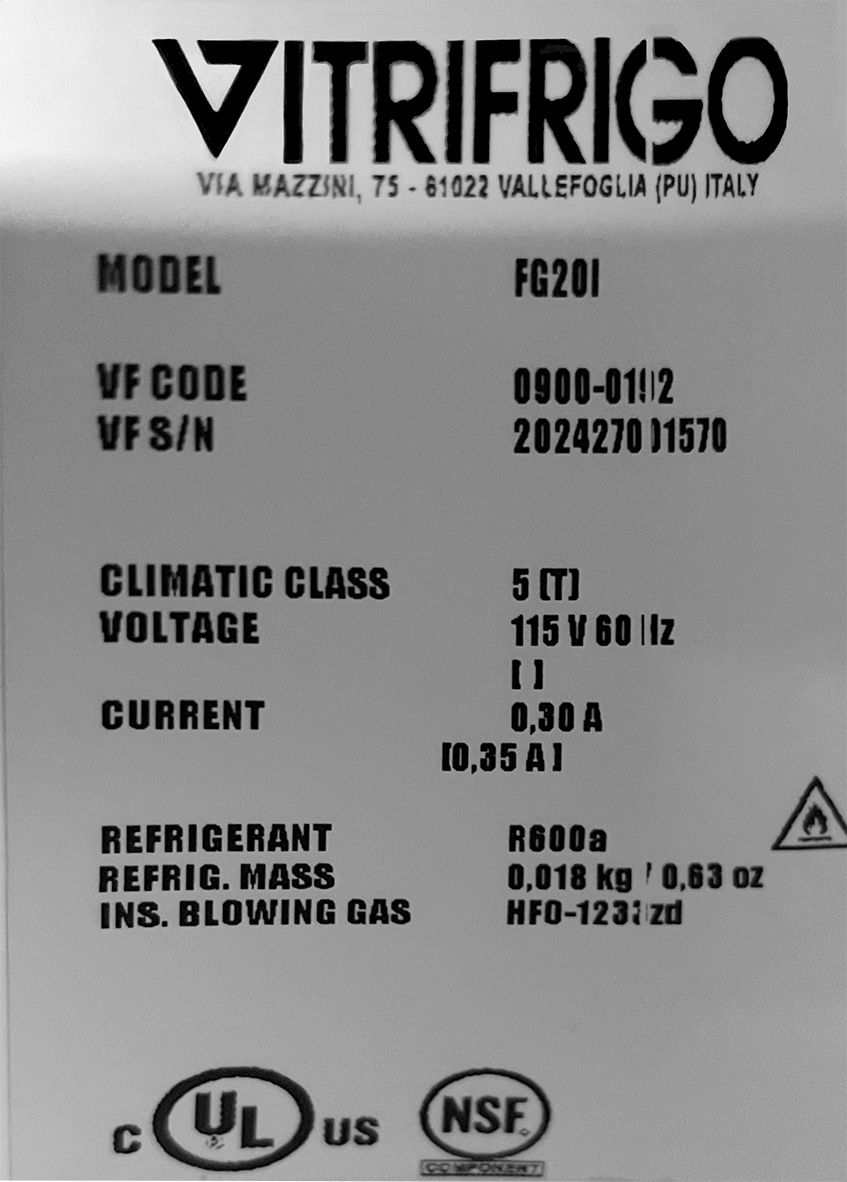

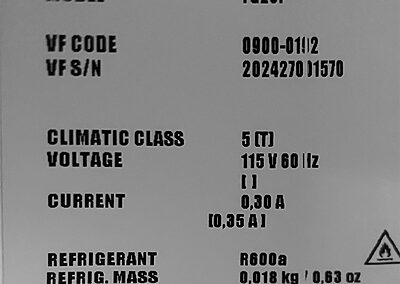

FRESH MILK FRIDGE

• Fits two gallons
• Instant water flush after each drink for sanitation and sterilization.
• Option: keep two types of milk to satisfy customers’ diverse tastes
• Auto-clean function maintains this model for daily cleaning (attendant is necessary)

SENSORS

• Out of coffee beans detector- sensors can detect blockages and out-of-stock beans
• Blocked grinder
• Electronic water temperature control & water level control

MAINTENANCE & REFILLING

• Accessing the inside of the machine and cleaning it is easy.
• Easy-to-refill flip-top canisters: No need to remove the canisters to refill.
  • Optional: lockable hoppers
• Auto-Cleaning: The hot water boiler is incorporated for an auto-cleaning process, which flushes mixing bowls and milk dispensing tubes with hot water after drink services. Schedule the mixing bowl for cleanings 15 minutes or more afterward. Liquid milk cleaning is automatic after every drink.
• Minimal daily maintenance: The coffee ground drawer has a capacity of up to 50 coffee grounds and can be expanded to accommodate a drop-down waste basket. Their design allows for easy emptying and thorough cleaning in the dishwasher.
• Easy-to-follow guides help keep your machine in top condition.

CONNECTIVITY AND COMMUNICATIONS

• RS232
• EVA DTS level 1

POWER

• Voltage: 110V-120v / 60 Hz /
• Current: T 16 A
• Maximum power: 2300 W
• EcoMode energy efficiency: Energy consumption has been minimized as much as possible, achieving an A+ Energy Class rating certification.

COLOR

• Black
• White One-Touch Drinks magnet wraps (fee applies)
• Custom wrap (additional fee applies)

ADDITIONAL FEATURES

• Made from durable materials such as acrylic glass and cold-rolled sheet metal covered with wood.
• The door features an anti-lever lock and metal panels that reinforce the cabinet.
• Illuminated product dispensing area enhances the user experience and facilitates a perfect
  presentation of the beverages.
• Independent drink counters: track drink order totals in the software
• Large waste bins can be incorporated with a Base Cabinet. Easily convert Rio by removing the pre-cut sections from its tray to drop high-waste volumes into the larger ones.
• Developed under the 3R rule: Reduce, Reuse, Recycle

ACCESSORIES and OPTIONS AVAILABLE

• Credit Card/Cashless Payment System compatible, such as Nayax (sold here).
• MDB Cashless Cable to attach a cashless payment system (sold here).
• Base Cabinet Stand: Sturdy and elegant, it’s perfect for storing a water jug, water pump, soluble product inventory, and more.
• Nayax Black Box for attaching a payment processor to the side of Rio.

WARRANTY

• New machines are given a one-year warranty on parts.

CERTIFICATIONS
